120KV 100KV 6000W BLDC Motor Sensorless Amphibious Fully Waterproof motor 65161 for Efoil Ejet boards

Regular price
$449.00
Sale price
$449.00
Regular price
$459.00
Sold out
Unit price
per
Shipping calculated at checkout.

Intro

Fully Waterproof brushless dc motor 65161 Sensorless Amphibious 120KV 100KV 6000W for Efoil, Electric surfboard, Electric Hydrofoil,Foilsurf,Surffoil, RC Boat, Esurf, Jetski, Jetboard

Product Spec:

  • Voltage range: 6-20S (25.2-84V)

  • Max Spin Speed(RPM): 16380

  • KV(RPM/V): 120KV/100KV

  • Max Power:6000W

  • Peak current: 200A

  • The number of pole: 6
  • Max torque at 60%:9NM

  • Demension: D65*L161mm

  • Max working temperature: 120︒C

  • Insulation voltage & leak current: AC500V/10MA/3S

  • Lead wires extension: 8AWGx1300mm

  • Waterproof level:IP68

  • Weight:3kg

  • Plug: 8.0mm

  • Motor wire: 8AWG
  • Shaft: 12mm

Package inclued:

1*FS65161 ( 100KV or 120KV)

1*Propeller

3*8.0mm bullet connectors

Why upgrade from oil sealed to water/ceramic sealed)?

Add a ceramic ring in the middle, reduce the direct contact between the sealing ring and the bearing, extend the life of the bearing; improve the waterproof performance

Update Detail:

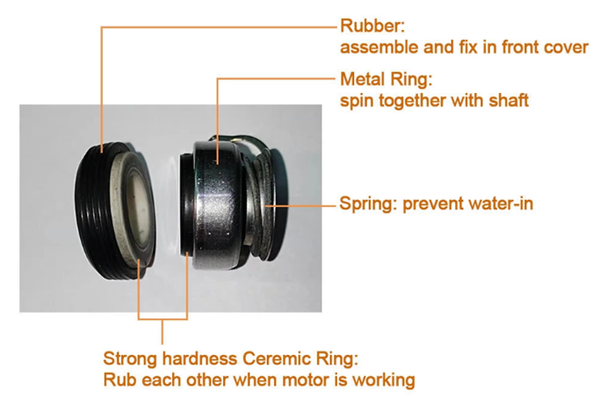

Water-seal has 2 parts as the following pictures
2 strong hardness ceramic run with each other and metal ring part spins together with shaft&ball bearing,
which can prevent the abration between shaft and water-seal, extend the motor lifespan with better IP rate.



more other Electric Skateboard Motor

rubber structure of the waterproof brushless dc motor 65161
rubber feature of the waterproof brushless dc motor


12mm shaft with M8x1.25 thread (Sensorless)

the size of waterproof dc motor shaft


Application:

Efoil, Electric surfboard, Electric Hydrofoil,Foilsurf,Surffoil, RC Boat, Esurf, Jetski, Jetboard, etc.,

waterproof brushless dc motor Application
